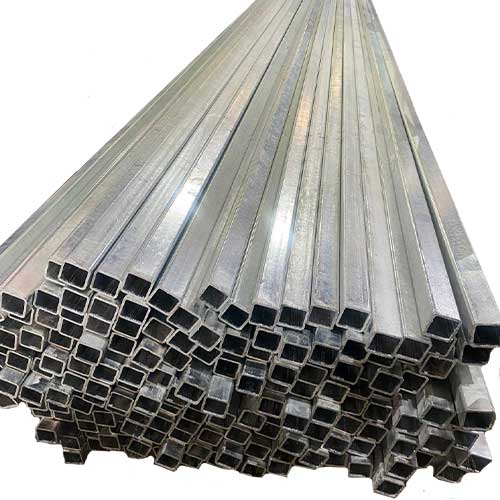

ERW Hollow Section

ERW Hollow Section pipes and tubes can be supplied with black paint mill finish or with anti rust oil coating for surface protection of the pipes. Square steel pipes both in seamless and welded form are widely used for structural purposes, architectural work, special piping systems and many other general purpose fabrication works. Square steel pipes can be offered in both mechanical and structural grades, as per the requirement of our customers

Product Application

Weight Control and high stress resistance
Lifting and load handling systems
Furniture Industries
Domestic Applications
Fencing Industry
Special Size Square Pipes for Offshore Applications

Product Specification

Size	Shape	Unit Pipe Length	Application	Condition
As Per Requirement	Square	3 meter, 6 meter, 9 meter, 18 meter, Customized	Structure Pipe	New

ATG also offer hot dip galvanise structures like angle-Chanel-beems-flats & also manufacturer of metal beam crash barrier, purlins,solar mounting structures

ERW M.S. Hollow Sections (Black & Galvanised) for structural purpose conforming to IS-4923 (2017) EN: 10219/Yst-210, 240

Section	Thickness
(mm)	1.00	1.20	1.40	1.60	1.80	2.00	2.20	2.50	2.80	3.00	3.20	3.50	4.00	4.50	5.00
16 X 16	•	•	•	•	•	•	•	•
20 X 20	•	•	•	•	•	•	•	•
25 X 25	•	•	•	•	•	•	•	•	•	•
30 X 30	•	•	•	•	•	•	•	•	•	•
32 X 32	•	•	•	•	•	•	•	•	•	•
38 X 38	•	•	•	•	•	•	•	•	•	•	•	•	•
40 X 40	•	•	•	•	•	•	•	•	•	•	•	•	•
50 X 50			•	•	•	•	•	•	•	•	•	•	•	•	•
60 X 60			•	•	•	•	•	•	•	•	•	•	•	•	•
72 X 72			•	•	•	•	•	•	•	•	•	•	•	•	•
80 X 80			•	•	•	•	•	•	•	•	•	•	•	•	•
90 X 90			•	•	•	•	•	•	•	•	•	•	•	•	•

ATG offer a wide range of M.S. Black & Galvanized Pipes & tubes size from 1/2" to 4" with wall thickness from 1.00mm to 5.00mm in rounds, Square size from 16 x 16 to 90 x 90 mm & Size 40 x 20 to 122x61 mm in rectangular. We also offers light thickness G.I. Tubes for Sprinkler Systems, Green House Purpose, should End / Flexible coupling pipes equivalent to IS : 11722, Conduit Pipes & heavy G.I. pipes for solar Street Light Poles, Scaffolding pipes in different steel Grades - S-355 (HT-52), EN - 39 (Yst-240, Yst-210) or as per customers requirement.

Section	Thickness
(mm)	1.00	1.20	1.40	1.60	1.80	2.00	2.20	2.50	2.80	3.00	3.20	3.50	4.00	4.50	5.00
30 X 20	•	•	•	•	•	•	•	•
38 X 12	•	•	•	•	•	•	•	•
40 X 25	•	•	•	•	•	•	•	•	•	•
50 X 15	•	•	•	•	•	•	•	•	•	•
50 X 25	•	•	•	•	•	•	•	•	•	•	•	•	•
60 X 40			•	•	•	•	•	•	•	•	•	•	•	•	•
75 X 25			•	•	•	•	•	•	•	•	•	•	•	•	•
80 X 40			•	•	•	•	•	•	•	•	•	•	•	•	•
100 X 25			•	•	•	•	•	•	•	•	•	•	•	•	•
96 X 48			•	•	•	•	•	•	•	•	•	•	•	•	•
122 X 61			•	•	•	•	•	•	•	•	•	•	•	•	•
